Ventline V3094-603-00 - E-Z Lift Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - Smoke

This roof vent has a single-speed fan that circulates air, and it opens quickly and easily with the spring-loaded handle. The handle locks the translucent, wedge-shaped dome into 10 different positions. Install kit and garnish sold separately.Features:

• Roof vent has a fan that pushes stale air out of your RV, camper, or enclosed trailer

Vent allows air to circulate while your RV remains locked and secure

• 12V DC, 8-blade, single-speed fan

On/off switch is mounted to ventFan rotates counterclockwise

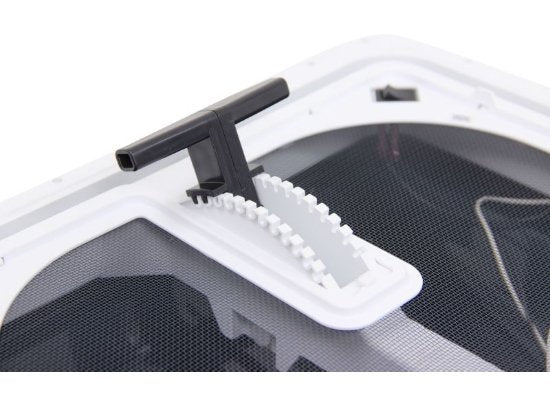

• Easy-to-use handle lets you quickly open and close the vent from inside your RV

Spring-loaded handle locks into 10 different positionsNo gears - opens vent faster than a standard crank handle or hand knobErgonomic T-shape is easy to grip

• Aerodynamic, wedge-shaped dome (or lid) is made of durable smoke-colored polypropylene

Translucent dome allows some light through

• Polar white screen snaps out for easy cleaning
• Vinyl weather seal helps keep water out when vent is closed
• Manual lift design
• White, 1/4" thick mounting flange is built in

UV-resistant, long-lasting specialty polymer plastic constructionSmooth edges won't cut you during installationWorks well with all roofing materials

• 2-Wire design

Black wire is powerWhite wire is ground

• Interior trim piece (or garnish) and installation kit sold separately
• 4 Mounting points on flange allow for installation of a vent cover (sold separately)
• Made in the USA

Specs:

• Rough opening size: 14-1/4" wide x 14-1/4" long
• Overall dimensions (outside of flange to outside of flange): 16-1/2" wide x 16-1/2" long
• Vent extends above roof:
• 4" When closed
• 9-1/2" When fully open
• Overall fan diameter: 5"
• Fan shaft diameter: 0.091"
• Fan capacity: 100 CFM
• Power draw: 1.2 amps
• Limited 2-year warranty
