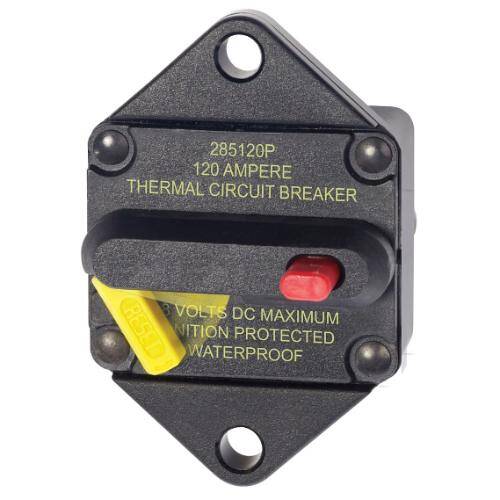

BLUE SEA 285 Series Circuit Breaker - 120 Amps/48 Volt DC - 7088-BSS

285 Series Circuit Breaker - 120 Amps/48 Volt DC - Blue Sea 7088-BSS

Circuit breakers protect the wire in electrical circuits. Blue Sea Systems broad selection of magnetic and thermal circuit breakers features a vast selection of main and branch circuit protection devices. Their robust design makes them ideal for marine and vehicle AC and DC electrical systems. Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Ampere loads when switching and circuit protection are both required.

Features

• Drop In Replacement For 185-Series Circuit Breakers
• Visible Reset Lever Shows Open Condition
• Ignition Protected: Safe For Installation Aboard Gasoline Powered Boats
• Meets SAE J1171 External Ignition Protection Requirements
• Weather Resistant
• Combines Switching And Circuit Breaker Function Into One Unit
• "Trip Free": Cannot Be Held Closed After Trip
• IP67 Waterproof Rating
• No Supplier Warranty

Details:

• Ampere Rating: 120 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual And Switchable
• Terminal Connection: M6 Stud
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25
